- For Following Ride Rite Kits: 2025, 2071, 2100, 2101, 2109, 2115, 2116, 2147, 2153, 2170, 2176, 2190, 2218, 2220, 2245, 2249, 2250, 2251, 2253, 2255, 2264, 2286, 2304, 2355, 2362, 2425, 2455
Replaces
Firestone: W21-760-6781, A01-760-6781, 6781
Specifications

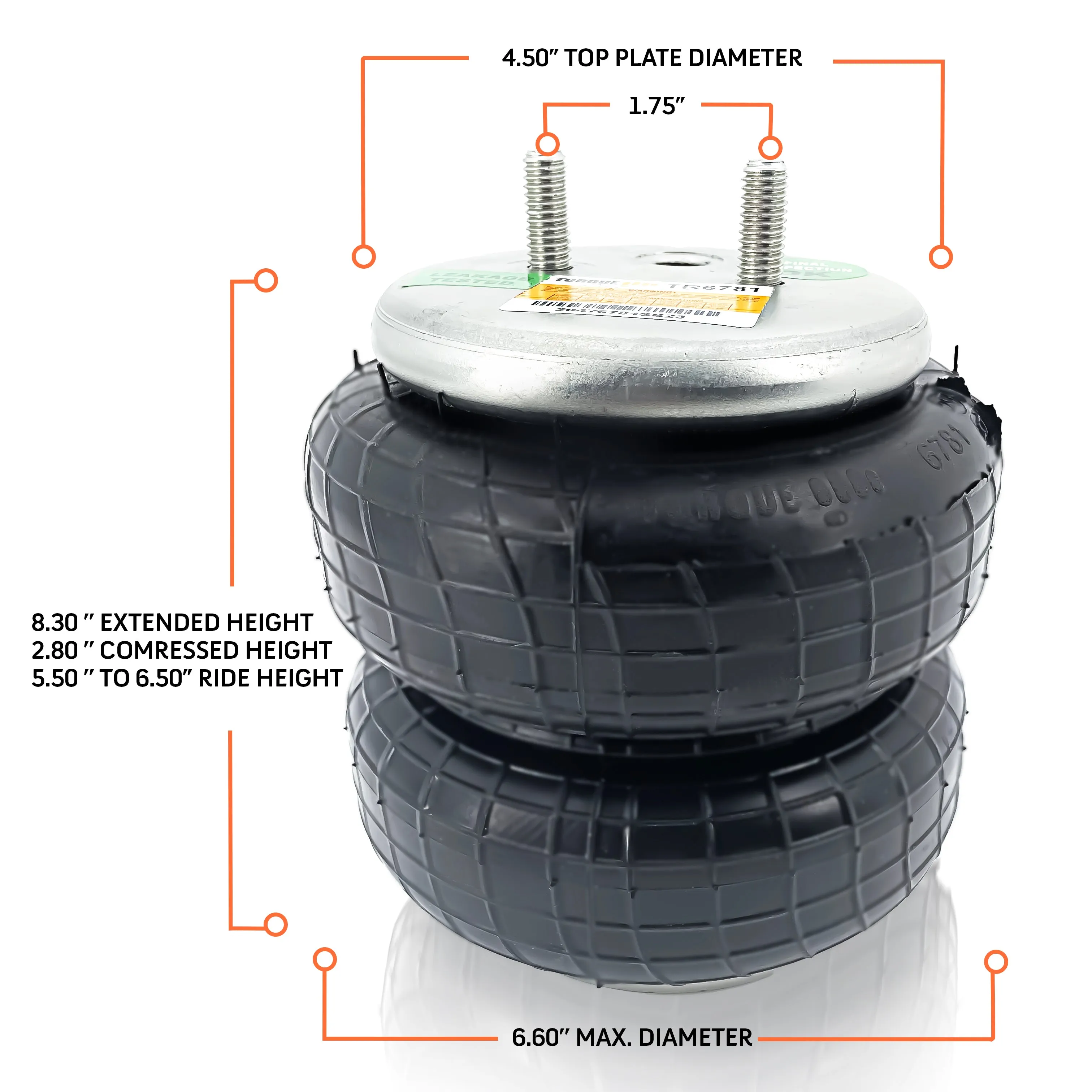

| Extended Length: | : 8.30" |
| Compressed Height | : 2.80" |
| Ride Height | : 5.50"-6.50" |
| Maximum Diameter | : 6.60" |

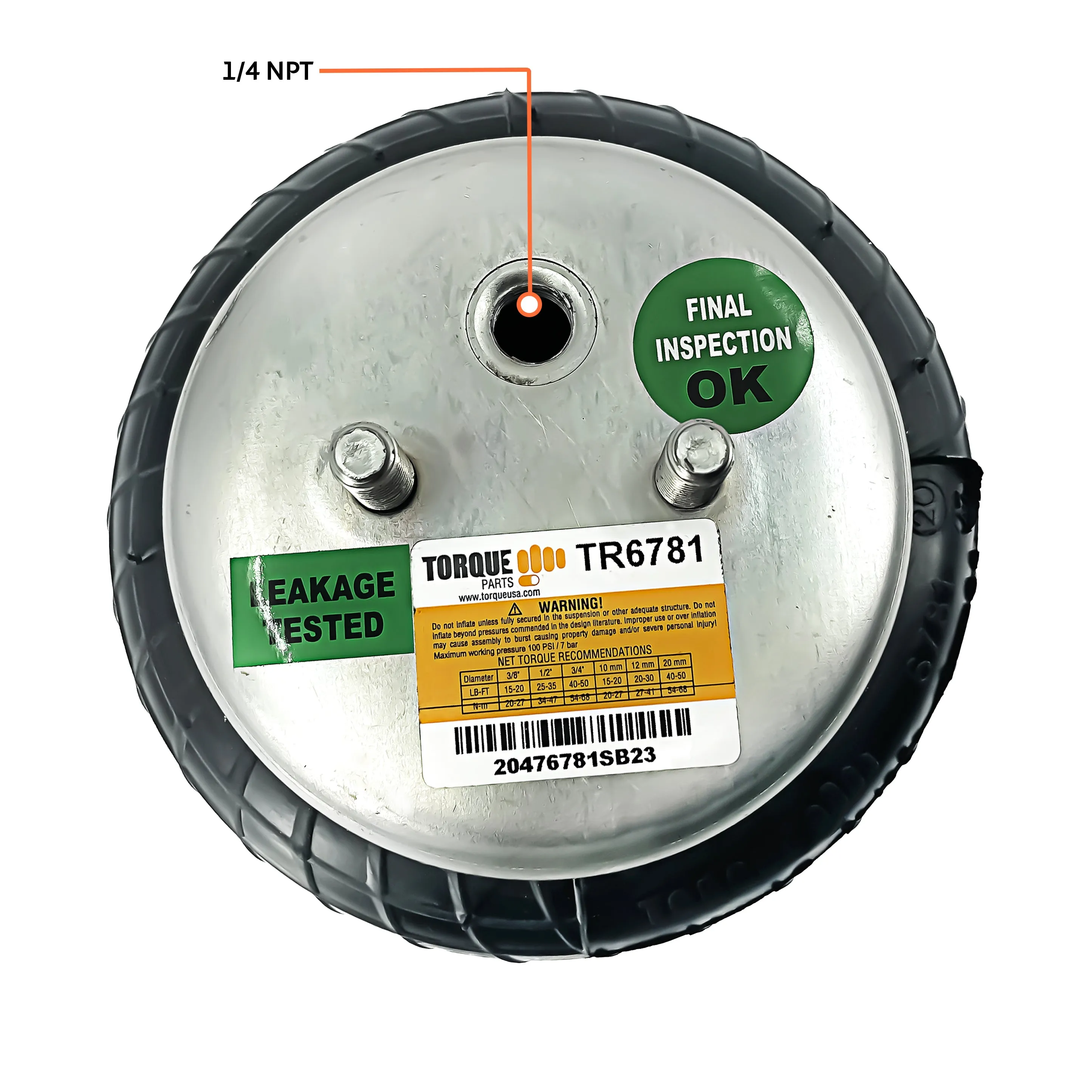

| Air Fitting | : 1/4" NPT Single Port |
| Weight | : 3.40 lbs |
| Ride Height | : 5.5"-6.5" |
| Top Mounting Studs | : 3/8"-16 x 3/4" (1.75" from left stud to right stud) |

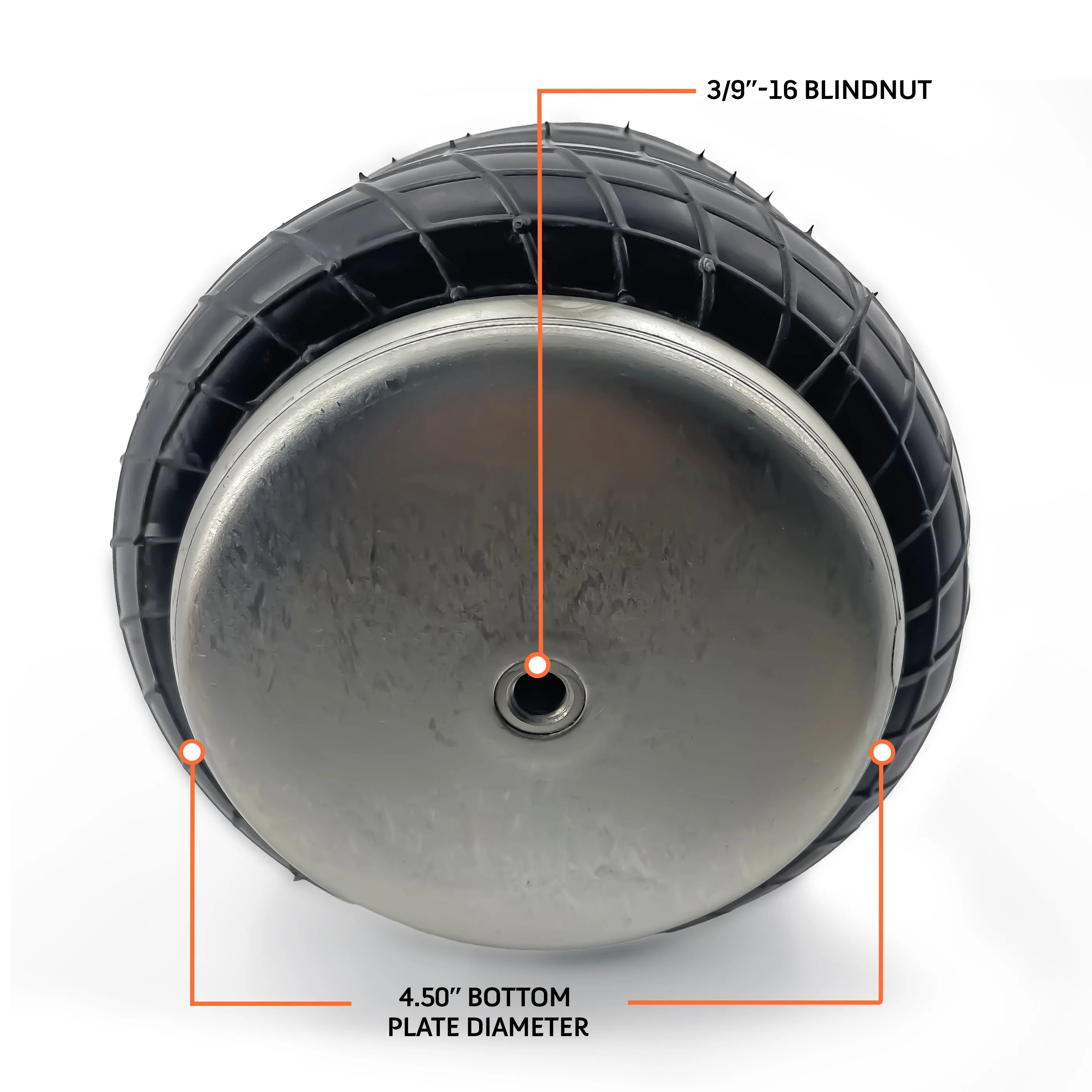

| Bottom | : 3/8"-16 Blindnut (Mounting Hole) |
