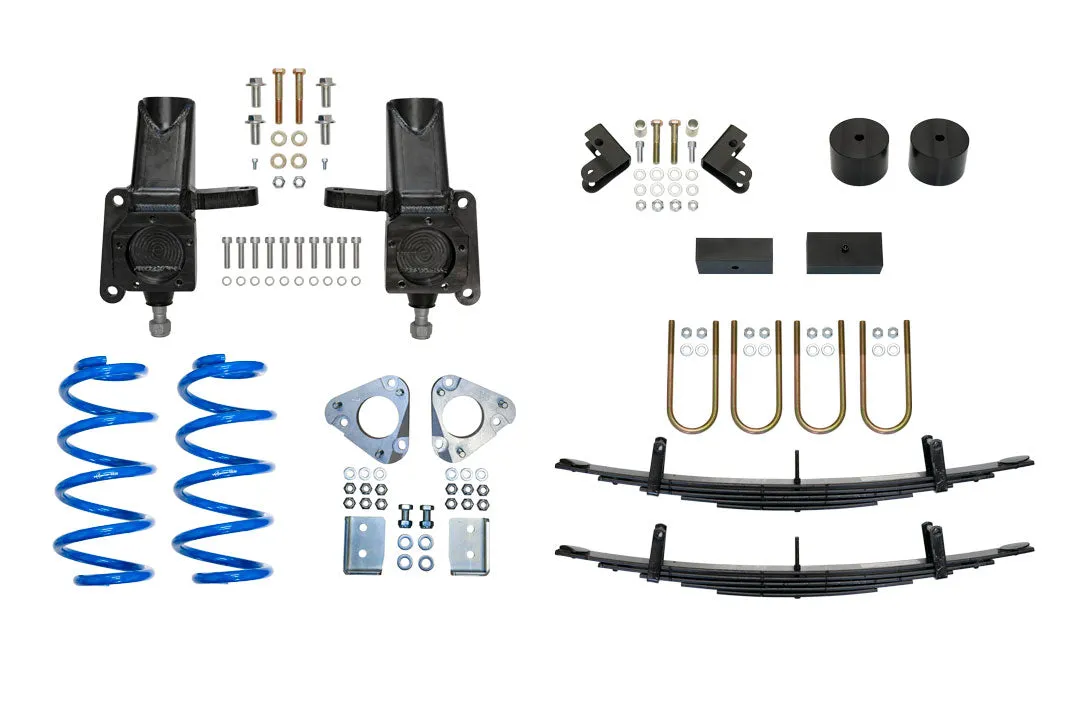

Finally! A complete, 4" lift kit for the Transit RWD platform. Combining our proven Topo 2" lift kit, tuned rear mini leaf spring pack and new 2" lift spindle allows you to create the ultimate high-clearance 2wd setup for clearing bigger tires and getting your van the clearance it needs to go farther.

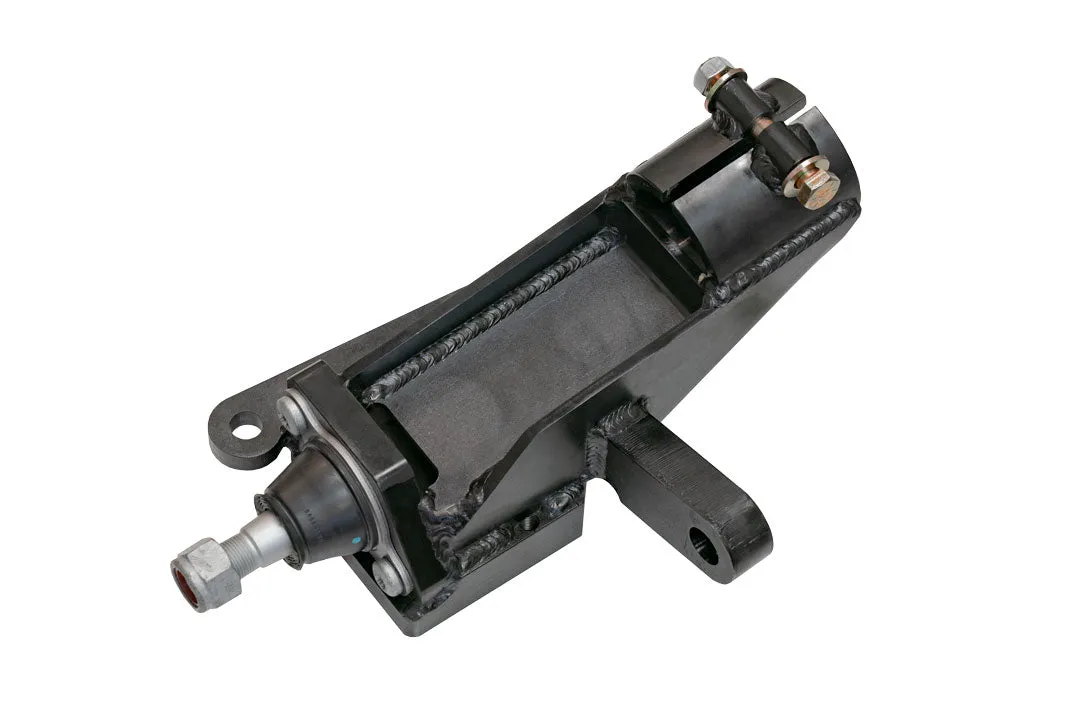

Lift spindles are a long time staple of the desert racing world, adding front clearance where it matters most: underneath the front control arms, cross members and frame. The added clearance allows easier fitment of larger tires, further increasing ground clearance and upping the capability of your 2wd van. Track width is increased modestly (1/2" per side, 1" total) for increased stability and a better scrub radius with larger tires.

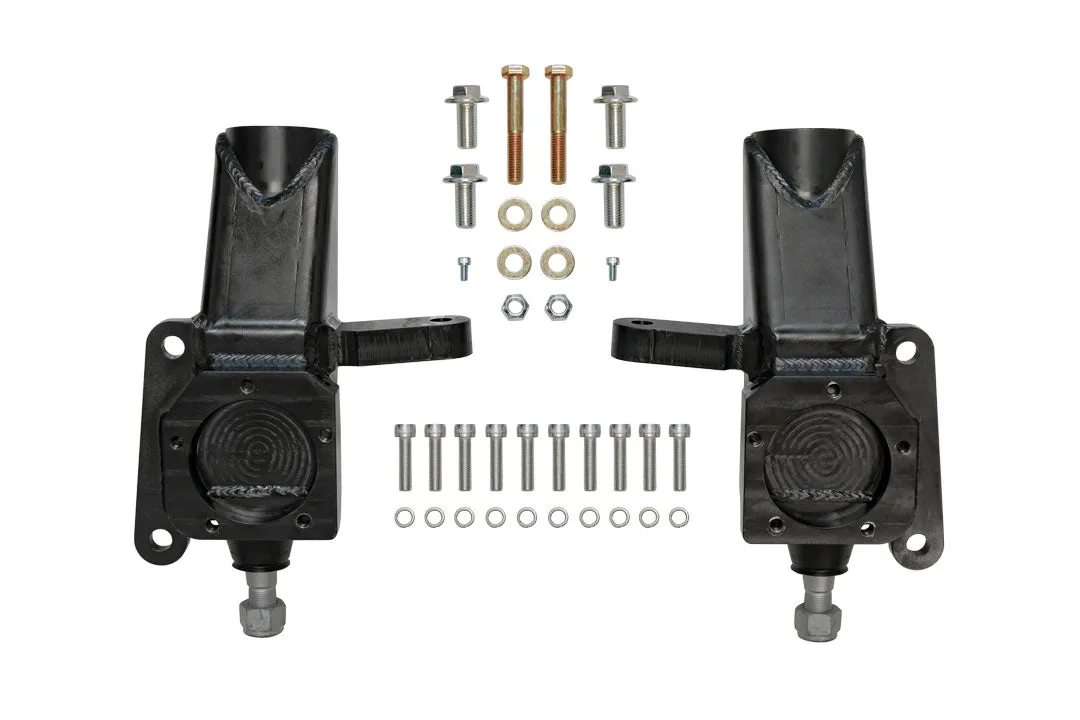

When properly engineered, there are no down sides. Our spindle was carefully designed to preserve the complex geometry of the front end without altering tie rod angle or placement, maintaining camber, caster and Ackerman angles within their correct specifications. Precision cut and machined parts key together to ensure solid construction. Motorcraft ball joints come pre-installed to simplify the installation process and ensure years of trouble free service. A complete hardware kit is included, and the spindles are plated with zinc oxide for corrosion resistance.

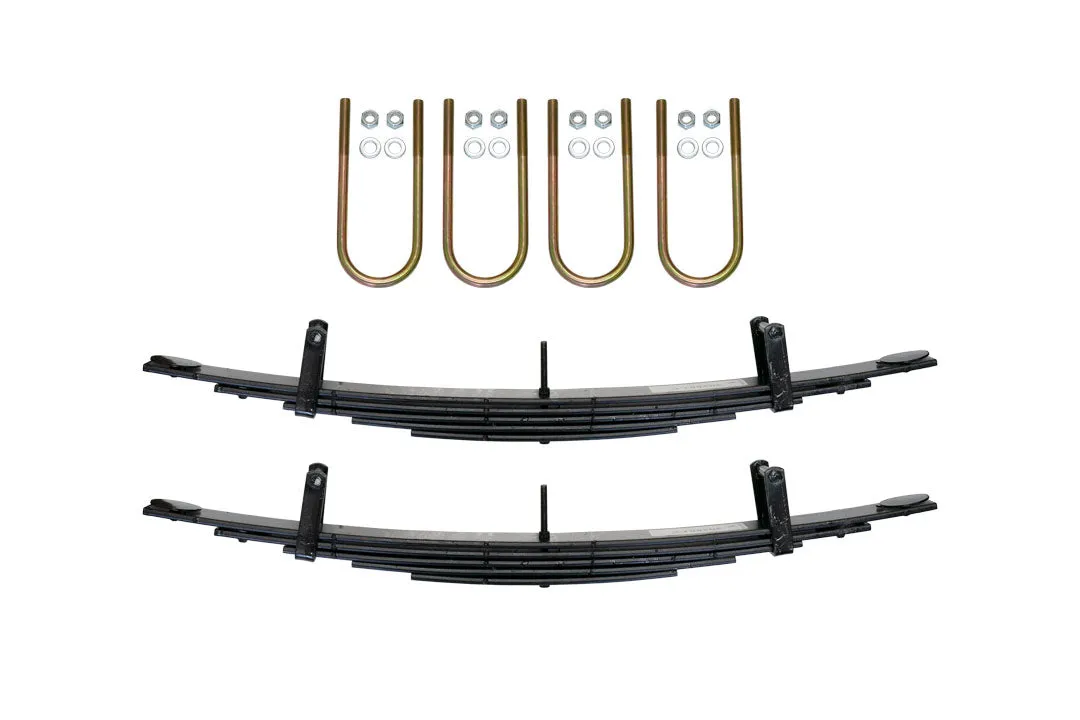

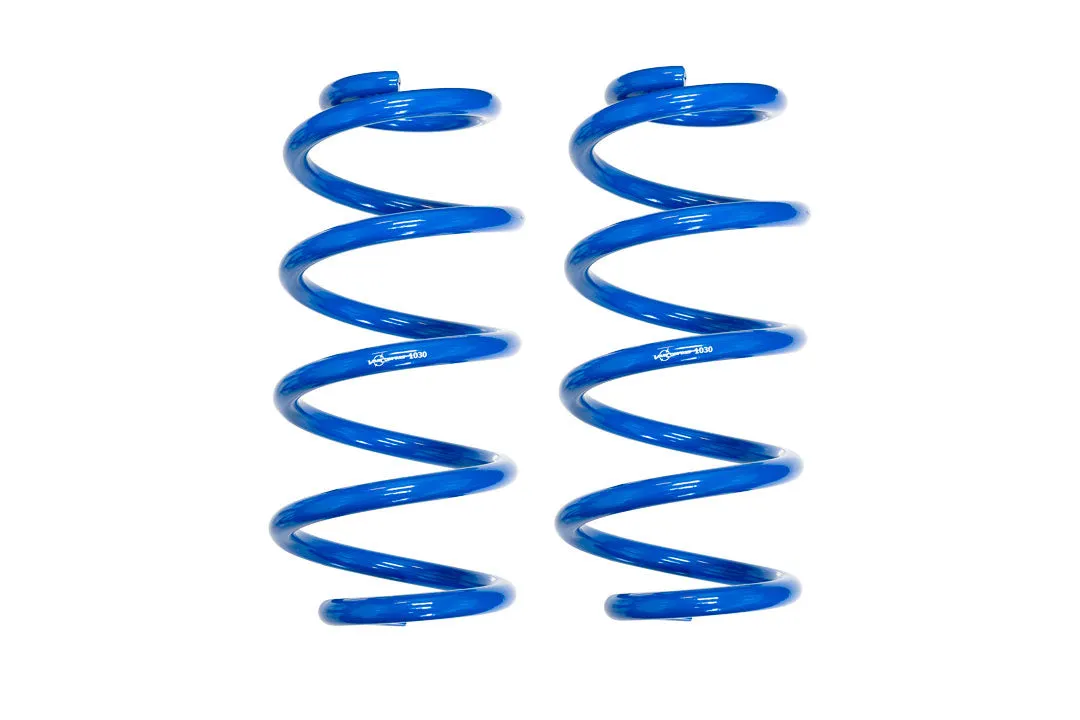

includes a taller coil spring and camber correction plates to ensure correct front end alignment geometry. The combination of a lift block and mini leaf spring offers a reliable way to increase ride height and add spring rate for heavy vans.

This kit is fully compatible with our Falcon rear shock upgrade and Bilstein front struts, for a huge increase in handling and performance. A 4" lifted front will clear a 285/70R17*, a versatile size tire great for off-highway use and on.
