Features:
Integrated skid plate design Increased ground clearance Levels the front with the rear of the vehicle HD 0.25-inch thick steel crossmembers. No exhaust modifications requiredManufacturer Notes:
The area above the rear driveshaft may have to be modified to create clearance on 2011 - 2015 models. Please view installation instructions for complete information on proper tire/wheel combinations. Use of a 33x12.50 tire may require modification to the front valanceInstall Time:

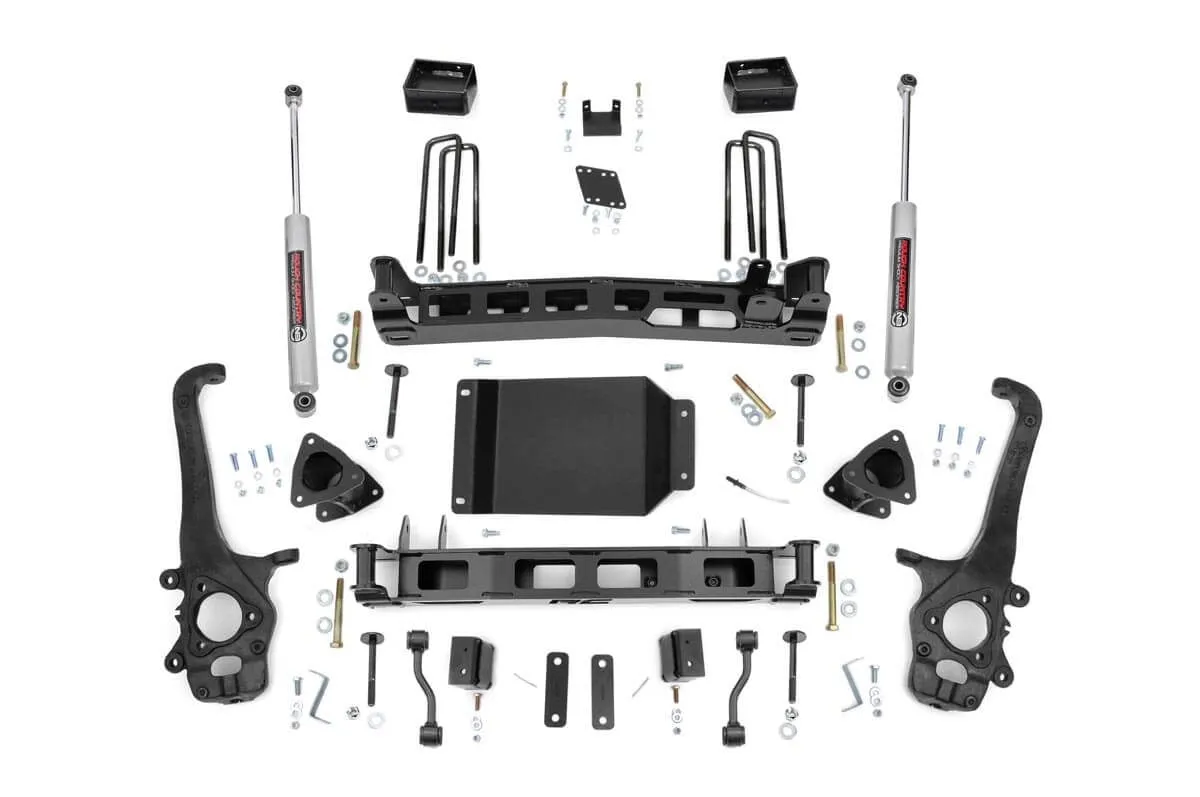

8-10 hoursFront Components:
Lifted knuckles Front crossmember Rear crossmember Upper strut spacers Bumpstop brackets Differential skid plate Cam bolts Sway-bar links Sway-bar brackets HardwareRear Components:
Fabricated lift blocks U-bolts Brake line brackets HardwareTire Fitment:
| Size | Wheel | Bolt Pattern | Wheel Offset | Note |
|---|---|---|---|---|
| 33x12.50R18 | 18x9 | 6x5.5 | -12 | - |
| 305/60R18 | 18x9 | 6x5.5 | -12 | - |
| 285/65R18 | 18x9 | 6x5.5 | -12 | - |
| 275/65R18 | 18x9 | 6x5.5 | -12 | - |
| 33x12.50R20 | 20x9 | 6x5.5 | -12 | - |
| 305/55R20 | 20x9 | 6x5.5 | -12 | - |
| 285/55R20 | 20x9 | 6x5.5 | -12 | - |
| 33x12.50R20 | 20x10 | 6x5.5 | -25 | Minor Trimming |
| 305/55R20 | 20x10 | 6x5.5 | -25 | Minor Trimming |
| 285/55R20 | 20x10 | 6x5.5 | -25 | Minor Trimming |
| 33x12.50R22 | 22x10 | 6x5.5 | -25 | Minor Trimming |
| 305/45R22 | 22x10 | 6x5.5 | -25 | - |
